Pure Molybdenum Plate，Molybdenum Sheet

Pure Molybdenum Plate，Molybdenum Sheet

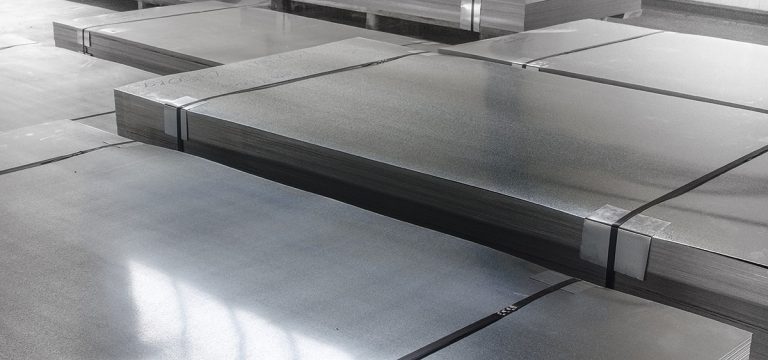

Molybdenum Plate and Molybdenum Sheet is made up of commercially pure molybdenum content. The material comprises more than 99.95% molybdenum. Molybdenum plates and sheets are the most common material chosen out of all the various molybdenum products. Many high temperature and electronic industries require molybdenum flat materials to produce furnace boats, hot zones, heat shielding, target materials etc.

Molybdenum Properties

Molybdenum Physical Properties		Molybdenum Mechanical Properties
Density	0.369 lb/in3 10.3 gm/cm3	Tensile Strength	150 (1035) ksi (Mpa)-RT
Melting Point	4760 °F 2625 °C		75 (515) ksi (Mpa)-500°C
Thermal Conductivity	0.35 cal/cm2/cm°C/sec		25 (175) ksi (Mpa)-1000°C
Specific Heat	0.061 cal/gm/°C	Elongation
Thermal Expansion	4.9 micro-in/°C x 10-6 2.7 micro-in/°F x 10-6	Hardness	230 dph
Electrical Resistivity	5.17 microohm-cm	Modules of Elasticity	45000 ksi
Recrystalization Temp.	1100 °C



Molybdenum Applications

• Vacuum furnace shieldings
• Furnace heating elements
• Thin Film Deposition
• Furnace support frames
• Boats for sapphire crystal furnaces and vacuum furnaces
• Molybdenum sputtering targets for the vacuum coating and evaporation coating
• Molybdenum Ion sources for ion implantation equipment
• Heat Sinks

Molybdenum Properties

• High Density: 10.3 g/cm³
• High Melting Point: 2625°C (4760 °F)
• Low Vapor Pressure
• High Tensile Strength
• Low Coefficient of Thermal Expansion
• Low Electrical Resistivity
• Good Machinability
• High Absorption Capacity
• High Elastic Modulus

We have realized that a high level of quality control of Molybdenum Plate and Molybdenum Sheet is an essential prerequisite in achieving high customer satisfaction. Therefore, we put a lot of emphasis on monitoring the quality of our products throughout both the manufacturing process and inspection stage. We can always ensure the high quality of our plates and sheets products. The quality received by our customer is guaranteed to have the required flatness, machinability, and formability.
