Introduction

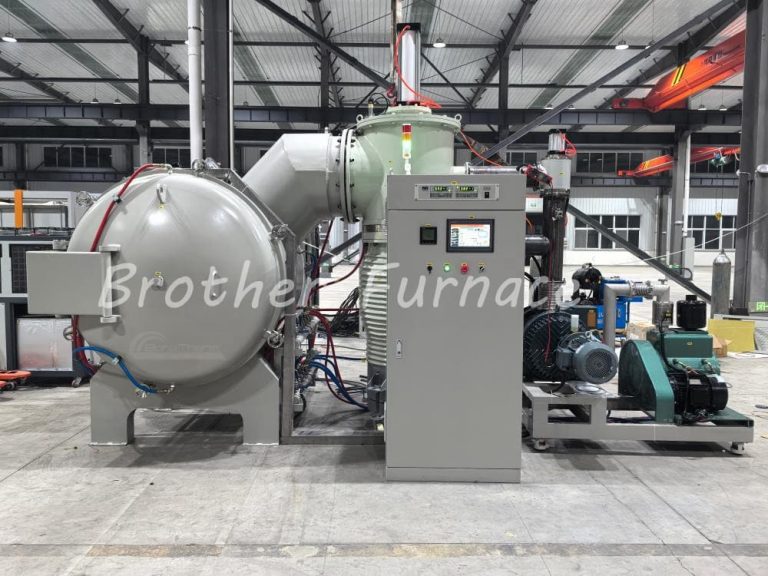

Vacuum heat treatment is a critical process in various industries, including aerospace, automotive, and medical. It involves heating materials in a controlled vacuum environment to achieve specific metallurgical properties. Vacuum heat treatment furnace is the essential equipment for this process, offering numerous advantages over traditional heat treatment methods.
Types of Vacuum Heat Treatment Furnace
There are two primary types of vacuum heat treatment furnaces:
1. Resistance-Heated Vacuum Furnaces
Resistance heating is a fundamental method where electrical resistance is used to generate heat. In resistance-heated vacuum furnaces, heating elements, typically made of molybdenum or tungsten, are strategically placed within the furnace chamber. By passing an electric current through these elements, they heat up and, in turn, heat the workpiece.
Key Components of a Resistance-Heated Vacuum Furnace:
- Furnace Chamber: Different materials for different temperatures.
1000℃ (Stainless steel)
1200℃ (Ceramic fiber board)
1350℃ (Molybdenum sheets)
1400℃ (Ceramic fiber board)
1700℃ (Ceramic fiber board)
2200℃ (Carbon felt) - Heating Elements: Different heaters for different temperatures.
1000℃ (Heating tubes)
1200℃ (Heating wires)
1350℃ (Molybdenum strap heaters)
1400℃ (SiC heating elements)
1700℃ (MoSi heating elements)
2200℃ (Graphite heating element) - Vacuum System: Vacuum pumps to create and maintain a high vacuum. The Max. Vacuum is 7×10-4 Pa.
- Temperature Control System: PID or PLC precisely regulates the temperature.
- Cooling System: Efficiently cools the furnace and workpiece.
See the Technical Details of Resistance-Heated Vacuum Furnace…
2. Induction-Heated Vacuum Furnaces
Induction heating utilizes electromagnetic induction to generate heat directly within the workpiece. A high-frequency alternating current is passed through a coil surrounding the workpiece, inducing eddy currents within the material. These eddy currents, in turn, generate heat through resistive losses.
Key Components of an Induction-Heated Vacuum Furnace:
- Furnace Chamber: A vacuum-tight chamber made of stainless steel.
- Induction Coil: A copper coil that generates the electromagnetic field.
- Crucible: To hold the molten metal. Choose the right crucible material to ensure the efficiency of the melting process and the quality of the final product.
- Medium Frequency Power Supply: IGBT or KGPS medium frequency power supply. Provides medium frequency alternating current to the induction coil.
- Vacuum System: Vacuum pumps to create and maintain a high vacuum. Normally, the Max. Vacuum is 7×10-3 Pa.
- Temperature Control System: PLC precisely regulates the temperature.
- Cooling System: Efficiently cools the furnace and workpiece.
- Tilt and pour System: To pour can casting the molten metal
Working Temperature Range
The working temperature range of vacuum heat treatment furnaces typically varies from 500°C to 2200°C. However, with advanced technologies, some furnaces can operate at even higher temperatures.
Applications of Heat Treatment Furnaces
1. Applications of Resistance-Heated Vacuum Furnaces
- Vacuum Sintering
- Vacuum Brazing
- Vacuum Quenching
- Vacuum Annealing
- Vacuum Tempering
2. Applications of Induction-Heated Vacuum Furnaces
- Vacuum melting and casting for a variety of high-melting-point metals and alloys.
Differences Between Two Vacuum Heat Treatment Furnaces
| Feature | Induction-Heated Vacuum Furnace | Resistance-Heated Vacuum Furnace |
|---|---|---|
| Heat Generation | Generates heat directly within the heated object through electromagnetic induction | Uses resistance heater to generate heat, which is then transferred to the object |
| Heating Rate | High | Low |
| Efficiency | High | Low |
| Precise Control | Precise control over heating patterns and rapid heating cycles | Uniform heating |
| Application | Melting metals for casting and forging | Heat treatment like sintering, brazing, quenching, annealing, tempering, etc. |
| Cost | Typically more expensive than resistance furnaces | Typically less expensive than induction furnaces |
FAQ
-
How to Prevent Contamination of the Workpiece?
- Maintain a high vacuum level.
- Use high-purity inert gases.
- Clean the furnace chamber and crucibles regularly.
-
How to Ensure Uniform Heating of the Workpiece?
- Optimize the furnace design and heating element placement.
- Use appropriate temperature control strategies.
- Employ effective cooling techniques.
-
How to Minimize Thermal Shock?
- Control the heating and cooling rates.
- Use appropriate furnace atmospheres.
- Consider the thermal properties of the workpiece and crucible.
-
How to Monitor the Heat Treatment Process?
- Use thermocouples and other sensors to monitor temperature.
- Implement real-time process control systems.
- Regularly inspect the furnace and workpiece.
Conclusion
Vacuum heat treatment furnaces are indispensable tools in modern materials processing, enabling the production of high-performance components with superior properties. By understanding the principles of vacuum heat treatment and the capabilities of vacuum heat treatment furnaces, industries can optimize their manufacturing processes and produce high-quality products.
