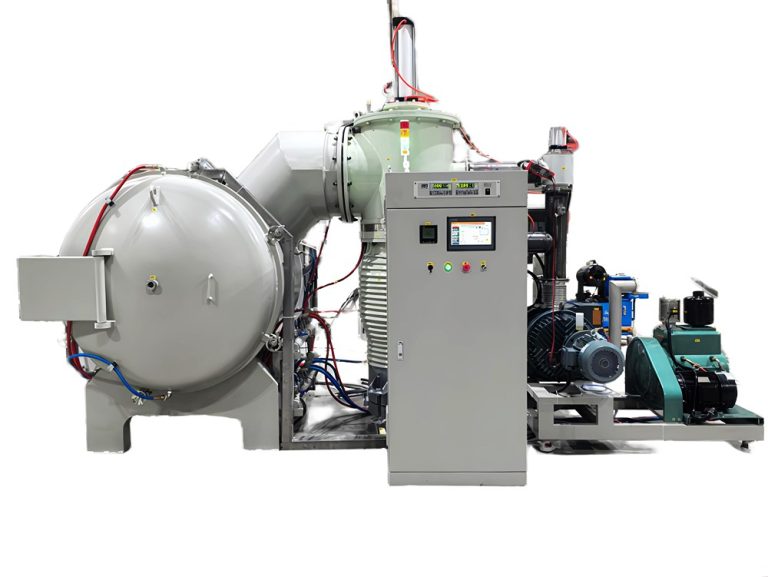

High Temperature Vacuum Furnace

High Temperature Lab Vacuum Furnace, 2200℃ Max. High Vacuum Heat Treatment Furnace.

This high temperature Vacuum Furnace is cost-effective. Max. vacuum 7×10-4Pa. Excellent uniformity, precise control for vacuum sintering, brazing, and hardening, etc. It is used for ceramic materials, ceramic-metal composites, refractory metals, and alloy materials, as well as vacuum brazing of alloy tools and superhard materials.



High Temperature Vacuum Furnace Applications:

• Vacuum heat treatment – hardening, tempering, and annealing
• Vacuum brazing
• Sintering
• Degassing

Advantages of High Temperature Vacuum Furnace:

• No surface oxidation or discoloration
• Minimal distortion
• Flux free brazing
• Repeatable quality
• Clean, safe, quiet and efficient

All our vacuum furnaces can be used with either an inert gas or a reactive gas. The majority of products in our vacuum furnace range are available with either ceramic fiber, molybdenum, or graphite insulation. On request, a furnace with a graphite insulation chamber can be configured to safely operate at up to 2200°C.

3 types of Furnace Chamber for optional



Vacuum System:



High Temperature Vacuum Furnace on Customers Site:

Ⅰ. Technical Specifications
Max. temperature	1200℃ (Heating wires) 1350℃ (Molybdenum strap heaters ) 1700℃ (MoSi heating elements) 2200℃ (Graphite heating element)
Furnace chamber insulation	1200℃ (Ceramic fiber board) 1350℃ (Molybdenum sheets and Stainless steel sheets ) 1700℃ (Ceramic fiber board) 2200℃ (Carbon felt)
Furnace structure	●Double layers Carbon steel casing with water cooling system to ensure the surface below 30℃ ● Furnace door inside is polished stainless steel
Working voltage	380V  50HZ  3P   (or according to your standard)
Max. power	5KW–180KW
Temperature controlling	●  PLC or PID automatic control via SCR (Silicon Controlled Rectifier) power control with phase angle fired, current limiting resistor. ●  51 programmable segments for precise control of heating rate, cooling rate and dwell time. ●  Built in PID Auto-Tune function with overheating & thermocouple broken protection. ●  Over temperature protection and alarm allows for operation without an attendant.
Optional of temperature controlling	●  Software (Furnace can be operated by PC by installing a control software ) ●  Touch screen temperature controller
Temperature accuracy	±1℃
Heating rate	Heating rate<20 ℃/min
Thermocouple	1200℃ (S type) 1350℃ (S type) 1700℃ (B type) 2200℃ (W-Re type)
Maximum vacuum	7×10-4Pa
Vacuum pump	● 10Pa with Double stages rotary pump ● 7×10-1Pa with Mechanical pump and Roots pump ●7×10-3Pa with Mechanical pump and Diffusion pump ●7×10-4Pa with Mechanical pump and Molecular pump
Warranty	●  One year limited warranty with lifetime support. (Consumable parts such as heating elements and crucibles are not covered by the warranty, please order the replacement at related products) ●  ATTENTION: Any damages caused by the use of corrosive and acidic gases are not under the coverage of One Year Limited Warranty.
Certifications	CE
Ⅱ. Application Notes
Using Attentions	●  Cooling rate shall also not exceed 5 ℃ /min. ●  Toxic or explosive gases are not recommended for use with this furnace without necessary safety controls and supervision. ●  Small cracks may appear on the surface of the refractory ceramics over extended use.



Furnace Standard Size as below: (other sizes can be customized)

Heating Wires High Temperature Vacuum Furnace up to 1200℃
