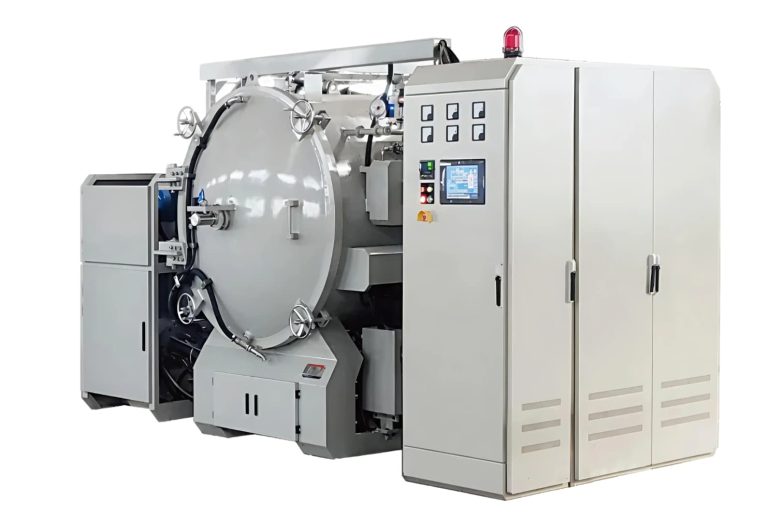

Vacuum Debinding Sintering Furnace for MIM
This Vacuum Debinding Sintering Furnace is a specialized thermal processing equipment that combines debinding and sintering processes in a single unit under vacuum conditions. It’s specifically designed for Metal Injection Molding components.
Key Process Steps
Thermal debinding: Removes polymer binders from MIM parts (300-600°C)
Sintering: Densifies metal particles at high temperatures (1200-1600°C)
Vacuum Debinding Sintering Furnace Features
- Installing a square-sealed box in the furnace saves space and increases efficiency. It also prevents degreasing and volatile gases from contaminating the furnace walls and insulation by discharging them outside.
- Optional protective gas atmosphere ( N2, Ar). The pre-vacuum of the furnace can effectively carry out the negative pressure degreasing.
- Multi-layer graphite backing plate, effective use of furnace space for loading materials.
- Graphite heating elements, high-purity graphite composite carbon felt insulation.
- Max. temperature: 1600°C,
- Multi-zone heating
- Precise temperature control
- Excellent temperature uniformity
- Precise temperature control
- Automated process control
- A vacuum environment prevents oxidation
- A mechanical pump + roots pump vacuum unit can be vacuumed to 10Pa in 10 minutes.
Applications
- Automotive components
- Medical instruments
- Aerospace parts
- Electronics components
- Watch components
- Firearms parts
Applicable Materials
- Stainless steels
- Tool steels
- Titanium alloys
- Tungsten carbides
- Copper alloys
- Nickel-based alloys
Vacuum Debinding Sintering Technical Parameters
| Mode | Chamber size (W*H*D)mm |
Capacity (KG) |
Power (KW) |
Voltage (V) |
Gas |
| BR-TZV-334 | 300X300X400 | 50 | 40 | 380 | N2, Ar |
| BR-TZV-446 | 400X400X600 | 100 | 80 | 380 | N2, Ar |
| BR-TZV-669 | 600X600X900 | 300 | 120 | 380 | N2, Ar |
