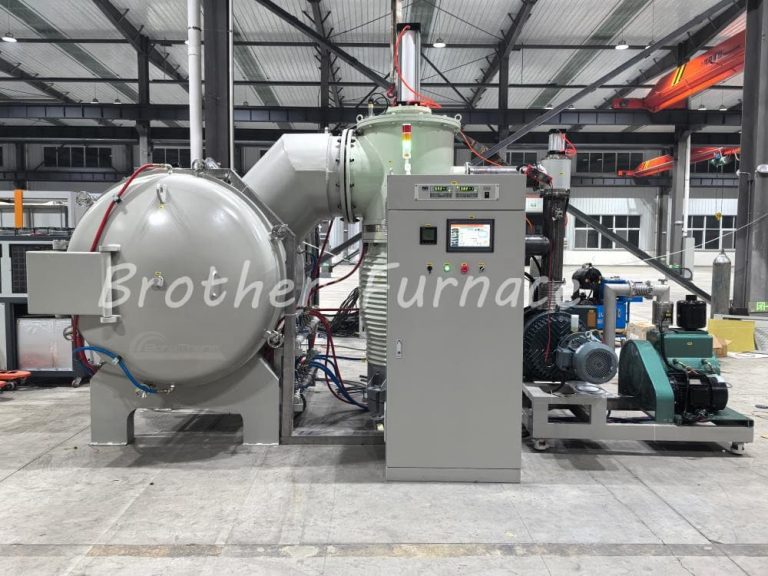

In the competitive landscape of advanced manufacturing, custom-designed vacuum furnaces have become the gold standard for industries requiring unmatched precision, repeatability, and adaptability. These systems transcend generic solutions, offering meticulously engineered configurations that address critical demands in temperature control, chamber design, vacuum performance, automation, and rapid cooling. By integrating cutting-edge technologies with client-specific requirements, Brother Furnace’s custom vacuum furnaces empower manufacturers to achieve breakthroughs in material science, energy efficiency, and process scalability.
Temperature Customization: Precision at Every Degree
Temperature control is the cornerstone of vacuum furnace performance. Custom designs ensure thermal uniformity, flexibility, and adaptability:
- Customized Heating Systems:
From low temperature to 2400°C, select the most suitable heating system based on different temperatures. Configurable heating zones using graphite, molybdenum, or tungsten elements achieve temperature uniformity as tight as ±1°C, essential for applications like vacuum brazing of aerospace components or sintering medical implants. - High-Temperature Capabilities:
Tungsten-lined hot zones withstand extreme temperatures up to 2400°C, enabling the processing of refractory metals like tungsten carbide or superalloys such as Inconel.
Chamber Customization: Tailored for Material and Process
The furnace chamber’s design directly impacts durability, versatility, and contamination control:
- Material-Specific Linings:
Ceramic fiber linings or refractory metal linings prevent cross-contamination in high-purity processes, such as medical-grade titanium sintering. - Modular and Scalable Geometry:
Expandable chambers accommodate diverse batch sizes—from R&D prototypes to mass production. Quick-swap hot zones enable rapid transitions between materials (e.g., ceramics to nickel-based alloys). - Optimized Insulation:
Layered graphite felt or ceramic fiber insulation balances thermal efficiency with rapid cycling, reducing energy consumption by up to 25%.
Vacuum Customization: Precision Atmosphere Control
Vacuum performance is engineered to meet exact process requirements:
- Hybrid Pump Systems:
Combinations of mechanical, diffusion, and turbomolecular pumps achieve vacuum levels 7×10-4 Pa Max. - Leak-Tight Integrity:
Welded stainless steel chambers, validated via helium leak testing, maintain stability under extreme thermal cycling. Double-sealed doors and advanced gasket materials enhance reliability. - Gas Backfilling Precision:
Inert gas backfilling (argon, nitrogen) is calibrated for controlled cooling or oxidation-sensitive processes, such as sintering porous biomedical implants.
Control System Customization: Intelligence-Driven Operations
Advanced automation ensures seamless integration with production workflows:
- PLC Programmable control :
Programmable automatic operation control, can be stored, monitored, and exported. - User-Defined Process Recipes:
Intuitive HMIs allow operators to store and replicate custom cycles, ensuring repeatability in critical applications. - Remote control：
you can use your mobile phone for remote monitoring and remote control.
Rapid Cooling Customization: Speed Meets Precision
Tailored quenching systems balance speed and part integrity:
- High-Pressure Gas Quenching:
CFD-optimized nozzles distribute nitrogen or argon, achieving uniform hardness in tool steels while minimizing distortion. - Oil Quenching for Aerospace:
Rapid oil quenching systems refine grain structures in nickel-based superalloys, enhancing fatigue resistance in turbine blades. - Controlled Slow Cooling:
Inert gas backfilling enables gradual cooling for stress-relief annealing of titanium components used in medical devices.
Industry-Specific Solutions: Addressing Unique Challenges
- Aerospace:
Custom systems for turbine blade sintering combine 2400°C Max. hot zones with CFD-optimized gas quenching, ensuring oxidation-free surfaces and uniform hardness. - Medical Devices:
Furnaces for porous titanium implants feature ±1°C temperature uniformity and ultra-clean vacuum environments to prevent biological contamination. - Energy Sector:
Vacuum induction melting (VIM) furnaces with tilt-pour mechanisms and integrated slag removal achieve 99.99% purity in corrosion-resistant alloys.
Beyond Hardware: Comprehensive Support for Global Success
Brother Furnace enhances customization through end-to-end services:
- Free Collaborative Design:
Our engineers partner with clients to optimize chamber geometry, cooling mechanisms, and automation workflows, minimizing upfront costs. - Global Installation & Training:
Our certified technicians oversee commissioning, while post-installation training ensures mastery of custom systems. - 24/7 Remote Diagnostics:
Real-time troubleshooting guarantees uninterrupted production across global facilities.
Contact us now for a custom quote or free design consultation.
