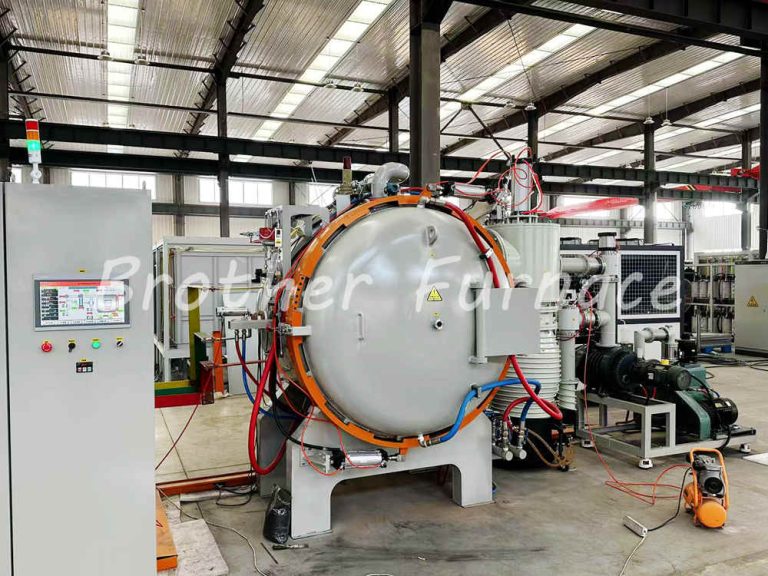

In the demanding realm of high-temperature vacuum processing, furnaces utilizing graphite for both the heating elements and the hot zone construction stand out for their exceptional thermal capabilities, particularly for sintering and specialized quenching applications. Graphite’s unique properties – extremely high sublimation temperature, excellent thermal conductivity, high strength at elevated temperatures, good thermal shock resistance, and its ability to create near-ideal blackbody radiation conditions – make it indispensable for processes exceeding the practical limits of metallic hot zones. This article details the two primary applications of graphite vacuum furnaces: high-temperature sintering and vacuum quenching.

Graphite Vacuum Sintering Furnaces: Advanced High-Temp Sintering

Graphite vacuum sintering furnaces are engineered to achieve the ultra-high temperatures required for consolidating advanced materials under controlled atmospheres. Key characteristics include:

1. Graphite Heating Elements & Hot Zone

Utilizing high-purity graphite tubes as heating elements and constructing the entire working chamber (often cylindrical and vertical, though horizontal designs exist) from graphite. This ensures maximum temperature capability and uniform heating.

2. High-Temperature Prowess

Capable of reaching maximum temperatures of 2200°C, far exceeding typical metal hot zone limits.

3. Optimized Thermal Performance

The graphite construction offers low density, reduced mass, and modest thermal capacity, enabling rapid heating and cooling rates, significantly shortening overall process cycles.

4. Black Body Conditions

The graphite chamber creates highly efficient radiant heating conditions, ensuring excellent temperature uniformity within the workload.

5. Atmosphere Flexibility

Operates effectively under high vacuum or inert protective gas atmospheres (Nitrogen, Argon). Crucially, operation in oxygen-containing atmospheres is strictly prohibited due to graphite oxidation.

6. Applications

These furnaces are vital for processing materials demanding the highest temperatures and controlled environments:

• Sintering of advanced metal powders (e.g., refractory metals, carbides)
• Sintering of non-metal materials (e.g., ceramics, technical ceramics)
• Purification and sintering of optical materials
• High-temperature heat treatment of sensitive components

7. Features & Control

• Double-walled, water-cooled stainless steel/carbon steel furnace shell for safety and thermal management.
• Observation port for visual monitoring of the heating process.
• Advanced temperature measurement using W-Re thermocouples (capable of high temperatures) and infrared pyrometers, with thermocouples often featuring automatic insertion/retraction.
• Precise process control via PLC or PID auto-control systems.

See the details of our Graphite Vacuum Sintering Furnace

Graphite Vacuum Quenching Furnaces: Precision High-Temp Hardening

For applications requiring rapid quenching after high-temperature heating under vacuum, particularly for tool steels and alloys where gas quenching intensity might be insufficient or where oil is the preferred medium, graphite vacuum oil quenching furnaces offer a specialized solution. These systems feature:

1. Graphite Hot Zone

Heating elements (typically graphite tubes) and insulation (graphite felt) within a graphite chamber, enabling high-temperature heating (often suitable for temperatures exceeding 1000°C for quenching processes).

2. Dual-Chamber Design

A critical feature separating heating and quenching:

3. Rear Chamber

Dedicated to vacuum heating using the graphite elements.

4. Front Chamber

Houses the quenching media – typically incorporating both oil quenching (lower section) and sometimes gas quenching (upper section) capabilities.

5. Integrated Oil Quenching System:

Lifting Mechanism: A robust elevator system (often screw-and-nut driven by a three-speed gear motor) transfers the hot workload rapidly from the heating chamber into the oil quench tank. Speeds are optimized for smooth transfer (“low speed start”), rapid immersion (“high speed oil quenching”), and precise positioning (“low speed location”).

Oil Mixing/Circulation System: Driven by a reducer, this system features deflectors to promote turbulent oil flow around the workload, significantly enhancing heat extraction (oil cooling capacity). Designed for low noise and high efficiency.

Oil Heating System: Maintains the quench oil at a pre-set optimal temperature for consistent quenching results.

Gas Quenching Option (if equipped): An upper section for high-pressure gas quenching, sealed effectively (e.g., using staggered teeth flange structures for positive/negative pressure sealing).

6. Applications

Primarily used for bright hardening and annealing of various high-performance steels requiring rapid quenching after vacuum heating:

• Alloy steel, Tool steel, Die steelHigh-Speed Steel (HSS)
• Bearing steel, Spring steel
• Stainless steel
• Also used for vacuum sintering of ceramics, hard alloys (cemented carbides), and metal brazing.

7. Advantages of Quenching Design:

• High Quenching Intensity: Oil provides significantly higher heat extraction rates than gas, essential for hardening large sections or certain steel grades.
• Bright Surfaces: Quenching under vacuum or immediately after vacuum heating prevents oxidation, resulting in clean, bright surfaces requiring minimal post-processing.
• Proven Technology: Well-established for critical tool and die applications.
• Dual Media Flexibility: The combination with gas quenching offers process versatility.

See the details of our Graphite Vacuum Quenching Furnace

Conclusion

Graphite vacuum furnaces, defined by their graphite heating elements and hot zone construction, are essential tools for the most thermally demanding vacuum processes.

As Vacuum Sintering Furnaces, they unlock ultra-high temperatures up to 2200°C, enabling the processing of advanced metals, ceramics, and optical materials with excellent uniformity and rapid thermal cycling in vacuum or protective gas.

As Vacuum Quenching Furnaces, they provide the critical combination of high-temperature vacuum heating and rapid, intensive oil quenching necessary for achieving the required hardness and metallurgical properties in large or demanding tool and die steel components, while maintaining surface brightness.

The inherent high-temperature capability, thermal efficiency, and versatility of graphite make these furnaces indispensable for pushing the boundaries of materials processing in high-end industrial and research settings, always respecting the crucial limitation of excluding oxygen from their operating environment.

Contact us now for a custom quote or free consultation.



Graphite Vacuum Furnace for sintering Standard Model:

Model	Heating Zone(Dia.* Height)	Temperature	Power	Voltage	Vacuum
BR-22STV-20	Φ80×100mm	2200℃	20kW	380V	7×10-3Pa
BR-22STV-25	Φ90×120mm	2200℃	25kW	380V
BR-22STV-40	Φ140×160mm	2200℃	40kW	380V
BR-22STV-50	Φ160×200mm	2200℃	50kW	380V
BR-22STV-60	Φ260×270mm	2200℃	60kW	380V
BR-22STV-100	Φ320×320mm	2200℃	100kW	380V



Graphite Vacuum Furnace for Gas Quenching Standard model:

Model	Chamber Size (W*H*D)mm	Max. Temp (℃)	Heating Elements	Capacity (KG)	Power (KW)	Max. Vacuum (Pa)
BR-QCL-334G	300*300*450	1350	Graphite	100	50	7×10-1 Pa
BR-QCL-446G	400*400*600	1350	Graphite	200	80	7×10-1 Pa
BR-QCL-557G	500*500*700	1350	Graphite	300	120	7×10-1 Pa
BR-QCL-669G	600*600*900	1350	Graphite	500	150	7×10-1 Pa
BR-QCL-8812G	800*800*1200	1350	Graphite	900	260	7×10-1 Pa



Graphite Vacuum Furnace for Oil Quenching Standard model:



* Other sizes can be customized.
