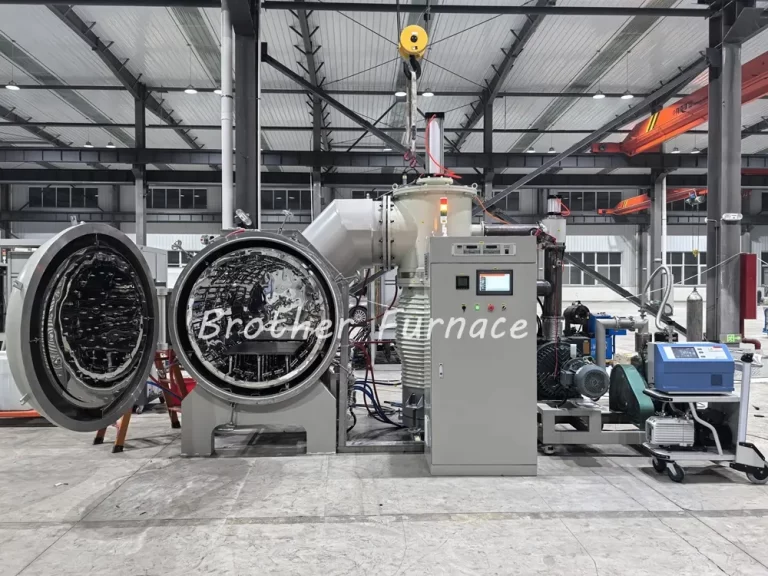

Within the demanding realm of high-temperature, high-vacuum heat treatment, furnaces constructed with molybdenum (Mo) heating elements and chambers represent the pinnacle of performance for critical processes like vacuum brazing and vacuum gas quenching. Molybdenum’s exceptional properties – notably its extremely high melting point (2623°C), excellent strength at elevated temperatures, low thermal expansion, and minimal vapor pressure in vacuum environments – make it the material of choice for these sophisticated applications. This article explores the two primary roles of molybdenum vacuum furnaces: as high-temperature brazing platforms and as controlled gas quenching systems.
Molybdenum Vacuum Brazing Furnaces: Precision Joining in Purity
Molybdenum vacuum brazing furnaces are engineered to operate at the extreme temperatures necessary for joining advanced materials without oxidation or contamination. Characterized by:
1. Molybdenum Heating Chamber & Elements
The core chamber and heating elements are constructed from molybdenum, capable of withstanding continuous operation at temperatures up to 1500°C under high vacuum.
2. High Vacuum Environment
Creates an oxygen-free atmosphere essential for preventing surface oxidation, discoloration, and embrittlement during the brazing process.
3. High-Temperature Capability
The robust molybdenum construction enables maximum temperatures of 1500°C, accommodating a wide range of high-melting-point filler metals.
4. Applications
These furnaces excel in brazing applications requiring pristine joint quality and minimal thermal distortion, including:
- Stainless Steel assemblies
- Cubic Boron Nitride (CBN) tooling
- Polycrystalline Diamond (PCD) tooling
- Diamond tool components
- Components using Copper, Silver, Nickel, or Aluminium-based filler metals
- Sintering and heat treatment of sensitive workpieces
5. Advantages
- Oxidation-Free Surfaces: Parts emerge bright and clean, eliminating post-braze cleaning.
- Minimal Distortion: Precise temperature control and uniform heating minimize warpage.
- Repeatable Quality: High vacuum and stable molybdenum heating ensure consistent, reliable results.
- Clean & Efficient Process: Eliminates fluxes, produces no fumes, and operates safely and quietly.
See the details of our Molybdenum Vacuum Brazing Furnace
Molybdenum Vacuum Gas Quenching Furnaces: Controlled Rapid Cooling
For applications requiring rapid cooling after high-temperature processing under vacuum, molybdenum vacuum gas quenching furnaces offer superior control and cleanliness compared to traditional oil quenching. These systems feature:
1. Molybdenum Heating Chamber
The hot zone utilizes molybdenum heaters and insulation (often molybdenum foil ), capable of reaching 1500°C.
2. Integrated High-Pressure Gas Quenching System
The defining feature. After heating under vacuum, the chamber is flooded with high-purity inert gas (Argon, Helium) or Nitrogen at controlled high pressure (1-10 bar).
3. Advanced Quenching Mechanics
Multi-Serial Graphite Spray Nozzles: Strategically integrated into the chamber walls to direct high-velocity gas uniformly onto the workload surfaces.
4. High-Pressure Blower & Heat Exchangers
A high-pressure blower forces gas through multi-stage, high-efficiency copper heat exchangers to absorb heat.
5. Duct Deflectors
Guide the cooled gas efficiently to the spray nozzles.
6. Precise Pressure Control
Adjustable pressure allows tailoring the cooling intensity (from gentle to very rapid) to specific material requirements.
7. Applications
Primarily used for hardening high-alloy steels demanding precise metallurgical control and surface integrity:
- Tool steels, Die steels
- High-Speed Steels (HSS)
- Ultra-High Strength Steels (UHSS)
- High-Carbon High-Chromium steels / Mold steels
8. Advantages
- Clean Quenching Medium: Uses inert or non-reactive gases (Ar, He, N2), eliminating oil residue, smoke, and fire hazards.
- Bright, Clean Surfaces: Workpieces emerge ready for use or further processing, requiring no post-quench washing.
- Environmental & Operational Benefits: Cleaner overall process, safer operation, no quench oil disposal.
- High Cooling Rates: Capable of rapid cooling, e.g., dropping from 1200°C to 300°C in under 5 minutes, suitable for many high-hardenability steels.
- Uniformity: Engineered gas flow via nozzles promotes even cooling, reducing distortion risk.
See the details of our Molybdenum Vacuum Gas Quenching Furnace
Conclusion
Molybdenum vacuum furnaces, leveraging the unique high-temperature and vacuum-compatible properties of molybdenum in their core heating chambers and elements, are indispensable tools for advanced thermal processing.
As Vacuum Brazing Furnaces, they provide the ultra-clean, high-temperature environment essential for joining critical components like diamond and CBN tools or stainless steel assemblies without oxidation.
As Vacuum Gas Quenching Furnaces, they deliver the controlled, rapid, and clean cooling necessary for hardening high-performance tool and die steels, resulting in superior surface quality and metallurgical properties.
The inherent stability, purity, and thermal capabilities offered by the molybdenum construction underpin the consistent, high-quality results demanded by these precision manufacturing processes, solidifying its role as the cornerstone material for high-end vacuum heat treatment technology.
Contact us now for a custom quote or free consultation.
Molybdenum Vacuum Brazing Furnace Standard Model:
| Model | Chamber size (W*H*D)mm |
Max Temp. | Power | Voltage | Max. vacuum |
| BR-QHM-223 | 200*200*300mm | 1350℃ | 34kW | 380V | 7×10-3 Pa(7×10-5 mbar) |
| BR-QHM-334 | 300*300*400mm | 1350℃ | 60kW | 380V | |
| BR-QHM-446 | 400*400*600mm | 1350℃ | 98kW | 380V | |
| BR-QHM-557 | 500*500*700mm | 1350℃ | 132kW | 380V | |
| BR-QHM-669 | 600*600*900mm | 1350℃ | 180kW | 380V |
Molybdenum Vacuum Gas Quenching Furnace Standard Model:
| Model | Chamber Size (W*H*D)mm | Max. Temp (℃) | Heating Elements | Capacity (KG) | Power (KW) |
Max. Vacuum |
|---|---|---|---|---|---|---|
| BR-QCL-334G | 300*300*450 | 1350 | Molybdenum | 100 | 50 | 7×10-1 Pa |
| BR-QCL-446G | 400*400*600 | 1350 | Molybdenum | 200 | 80 | 7×10-1 Pa |
| BR-QCL-557G | 500*500*700 | 1350 | Molybdenum | 300 | 120 | 7×10-1 Pa |
| BR-QCL-669G | 600*600*900 | 1350 | Molybdenum | 500 | 150 | 7×10-1 Pa |
| BR-QCL-8812G | 800*800*1200 | 1350 | Molybdenum | 900 | 260 | 7×10-1 Pa |
*Other sizes can be customized.
If you need Max. Temp. 1500℃ Molybdenum Vacuum Furnace, please contact us for more details.
