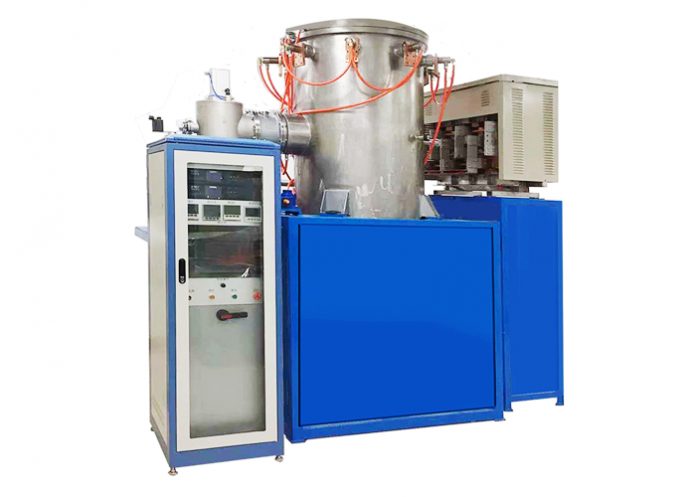

Vacuum Tungsten Coil Furnace

High Temperature Vacuum Tungsten Coil Furnace Up to 2200℃

Vacuum tungsten coil furnace adopts tungsten coil as heating elements, pollution-free. Because retains its strength at high temperatures and has a high melting point, elemental tungsten is used in many high-temperature applications. In addition, Tungsten is extremely corrosion resistant. The advantages of using Tungsten electrical heating elements are its high mechanical and thermal stability, low creep deformation and long life span.

Application

This Vacuum Tungsten Coil Furnace mainly used for the heat treatment of ceramic, melting, and sintering of high melting point metals, alloys, sapphire glass, zirconia in a high temperature vacuum environment. can also be used on some metal light, degassing treatment, etc.

Widely used in inorganic materials such as zirconia, ceramic seals, alumina, zinc dioxide, etc. and metal materials such as sintering hard alloy in a vacuum or protective atmosphere. can also be used to clean the required material for the heat treatment of the sintering environment. Also used for universities and research centers for mass production.

Featurers

  • Specially designed tungsten net heating and tungsten foil as the thermal insulation scre, the max. temperature can be 2200℃
  • Vacuum system can choose turbo pump, the ultimate vacuum can be 6×10^(-5)Pa.
  • Can inlet N2, Ar, H2, N2, and H2 mixed gas, etc.

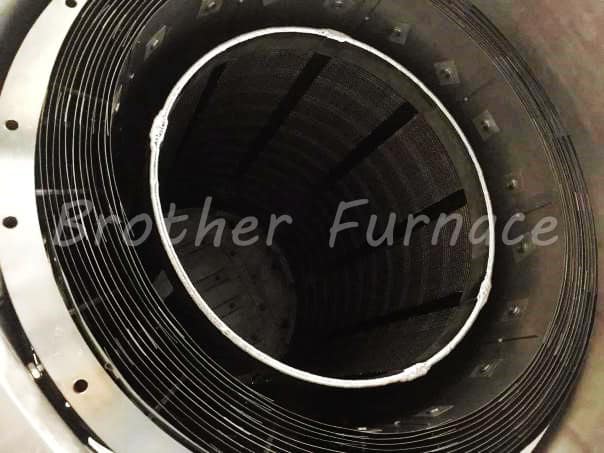

Vacuum Tungsten Coil Furnace Chamber



Vacuum Tungsten Coil Furnace Technical Parameter:

VACUUM: 0.0667Pa MAX. TEMPERATURE: 2200℃
CHAMBER SIZE: Φ320×320 Max. FURNACE CHAMBER: Graphite Felt
HEATING ELEMENT: Graphite OBSERVATION HOLE: Yes
CONTROL: PLC THERMOCOUPLE: W-Re Thermocouple
MAX. HEATING RATE: 20°C /min TEMPERATURE ACCURACY: ±1℃
TEMPERATURE UNIFORMITY: ±5℃



Model Heating Zone
(Dia * Height)
Working
Temperature
Temp. Uniformity Power Vacuum
BR-WSL-1010 ф100x 100mm 2200℃ ±3℃ 21KW 6×10-5Pa
BR-WSL-2030 ф200x300mm 2200℃ ±3℃ 68KW 6×10-5Pa
BR-WSL-3050 ф300x500mm 2200℃ ±3℃ 120KW 6×10-5Pa
BR-WSL-4060 ф400x600mm 2200℃ ±3℃ 160KW 6×10-5Pa
