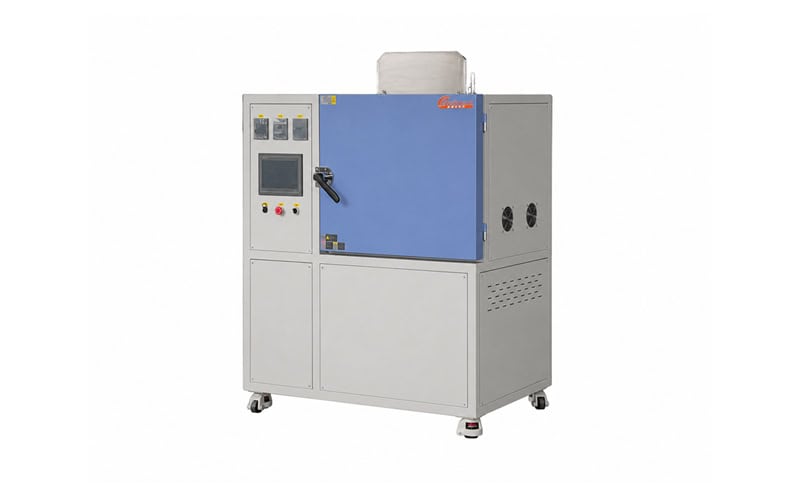

Debinding Furnace 1700℃ Max.

debinding furnace 1700 type

Debinding Furnace 1700 type, Debinding Oven up to 1700℃

This debinding furnace 1700℃ Max. is mainly used in the process of casting, injection molding, 3D printing, dry pressing, advanced ceramics, metal, glass, plastic, and composite materials. It can also be used for magnetic materials, ceramic chips, ferrites. Debinding and pre-burning process of magnetic sheets and other electronic components. The unique thermal field control technology ensures the uniformity of the temperature field and required for the two process stages of debinding and sintering.



Debinding Furnace 1700 type Features:

  • The maximum temperature is 1700℃ and the continuous temperature is 1650 ℃.
  • High-quality MoSi2 heating element.
  • 4 sides heating with excellent temperature uniformity (±5°C).
  • The bottom platform can be pulled out by the slide rails and convenient for loading.
  • The bottom platform lifting adopts a linear guide rail design with smooth movement.
  • There is a corundum mullite support pre-embedded at the plate bottom to prevent the load-bearing board from sinking and deforming.
  • This furnace is designed with a fresh air system to ensure temperature uniformity.
  • At the end of the rubber discharge program, the rubber discharge port closed and the fresh air fan stopped automatically, then the program automatically enters the high-temperature sintering. After the sintering finished, the exhaust port is automatically opened, and the fresh air fan starts to speed up the cooling rate when the temperature is lowered to the specified temperature.
  • The exhaust gas is collected by the collection cover that is discharged into the top of the furnace via the electric exhaust cover.



Standard Spares:

  • High-temperature gloves
  • Crucible clip
  • Operation Manual

Optional Spares:

  • Mullite multi-layer shelf.
  • Exhaust gas pyrolysis package to pyrolyze the irritating organic matter.

Debinding Furnace 1700 type Technical Specifications

MAX. TEMPERATURE:1700℃CAPACITY:36 ~ 432L
TEMPERATURE CONTROL:50 Segments Programmable And PID Auto ControlAIR SYSTEM:Air Entering System Included
PREHEATING:Air Preheating System IncludedMAX. HEATING RATE:20°C /min
TEMPERATURE ACCURACY:±1℃TEMPERATURE UNIFORMITY:±5℃
HEATING SIDE:4 SidesHEATING ELEMENTT:High Quality MoSi2 Heating Elemnet



Debinding Furnace 1700 type Standard Models

ModelHeating zone

(LWH)

Temp.Lifting methodPowerPower supply
BR-TZH-433400*300*300mm1700℃Electric screw14KW380V
BR-TZH-644600*400*400mm1700℃Electric screw30KW380V
BR-TZH-855800*500*500mm1700℃Electric screw45KW380V
BR-TZH-12661200*600*600mm1700℃Electric screw80KW380V



Other sizes can be customized.
