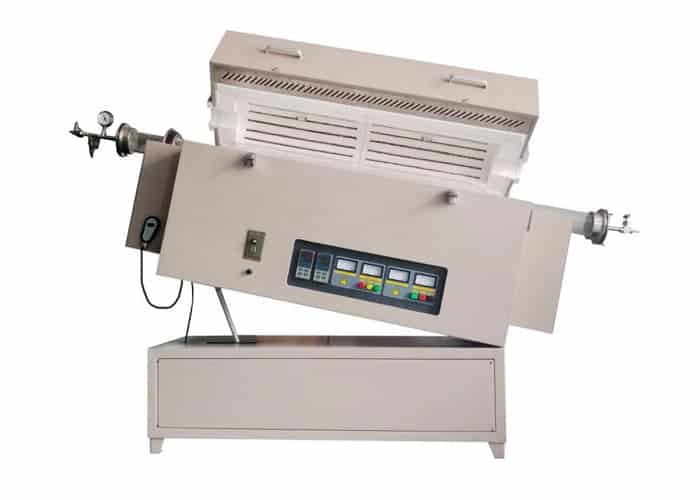

Steam activation furnace is a high-temperature rotary tube furnace with a Steam Generator and a Steam Flow Meter (up to 1200℃, 3–7 RPM). This furnace ensures uniform heat distribution, shorter sintering time, reduced energy use, and high-quality output for powders and granules. It’s mainly used for continuous physicochemical processing of loose materials, featuring various heat exchange methods and thermal control zones. It is also ideal for calcining inorganic compounds, especially in R&D for Li-ion battery cathode materials with conductive coatings like LiFePO₄ and LiMnNiO₃.
Steam Activation Tube Furnace Features
- Max temperature 1200℃
- 50 segments programmable and PID auto control
- Heating rate: 0~20 ℃/min
- Temperature accuracy: ±1℃
- 310S heat-resistant steel furnace tube, center-thickened structure with tapered ends.
- Upper open furnace cover design for real-time observation of heated materials
- Furnace tilt angle 0 – 30℃ variable, it’s convenient for loading and unloading material
- The tube rotating speed is 3 – 7 RPM variable ( reversible), and there are 3 quartz lifting plates on the inner wall of the tube. When rotating, the material is fully turned over and evenly heated.
- It has safe operation functions such as opening and closing power, over-temperature alarm, and leakage protection
Steam Generator Features
- Automatic water replenishment system with mechanical float-ball water level control
- Electrical-water isolated enclosure design: Ensures operational safety and simplified maintenance
- Enhanced leakage protection: Integrated safety mechanism eliminates electrical hazards
- Steam condensation prevention function: Maintains vapor-phase stability
Steam Generator Technical Specifications
| Parameter | Value |
| Power | 6 kW |
| Water inlet pressure | 0.1–0.3 MPa |
| Water capacity | 29 L |
| Max. steam pressure | 0.7 MPa |
| Rated steam output | 8 kg/h |
Steam Flow Meter
- The steam intake is controlled by a valve and monitored using a steam flow meter.
- Fully intelligent, highly resistant to interference, and applicable across a broad range of scenarios, the device features a simple yet robust structure.
Steam Activation Tube Furnace Standard Model:
| Model | Tube size
(Thin end dia meter*Heating zone length) |
Thick end diameter | Power | Max working temp. | Thermo couple |
Tube material | Heating element |
| BR-12NRT-60/300 | 60x300mm | 120mm | 3 KW | 1100oC | K type | Quartz tube | Fe-Cr-Al-Mo wire |
| BR-12NRT-60/450 | 60x450mm | 5 KW | |||||
| BR-12NRT-80/300 | 80x300mm | 150mm | 3 KW | ||||
| BR-12NRT-80/450 | 80x450mm | 5 KW | |||||
| BR-12NRT-100/300 | 100x300mm | 180mm | 5 KW | ||||
| BR-12NRT-100/450 | 100x450mm | 7 KW | |||||
| BR-12NRT-150/300 | 150x300mm | 200mm | 7KW | ||||
| BR-12NRT-150/450 | 150x450mm | 9 KW |
